Double Flare Punch – 101553 Series – 1037 | 0.625 TOD

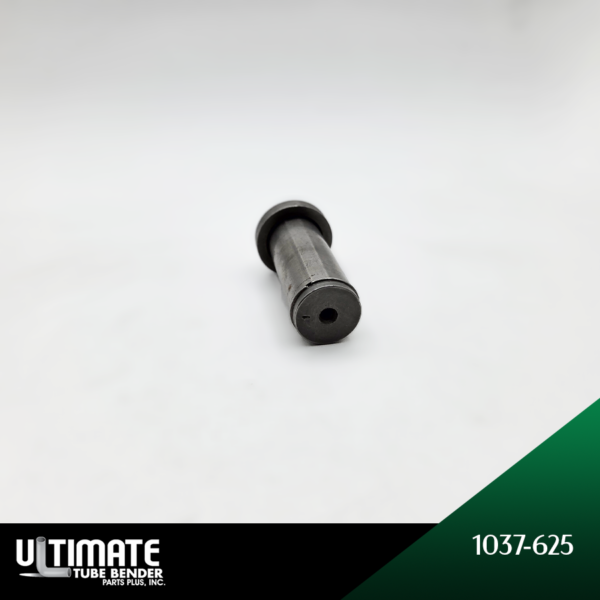

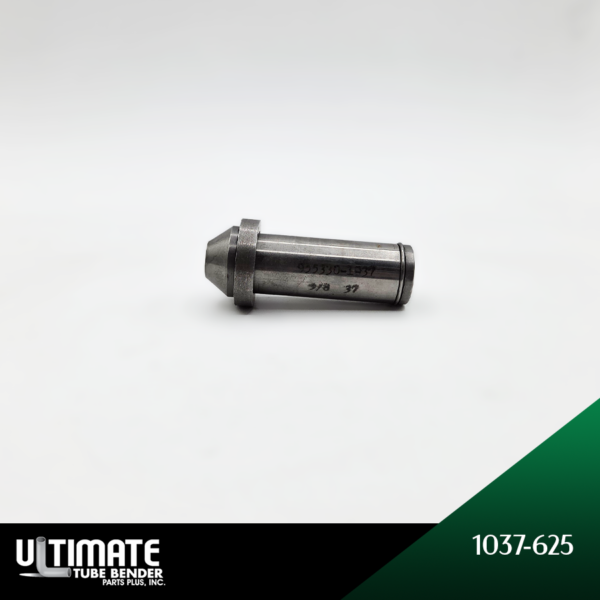

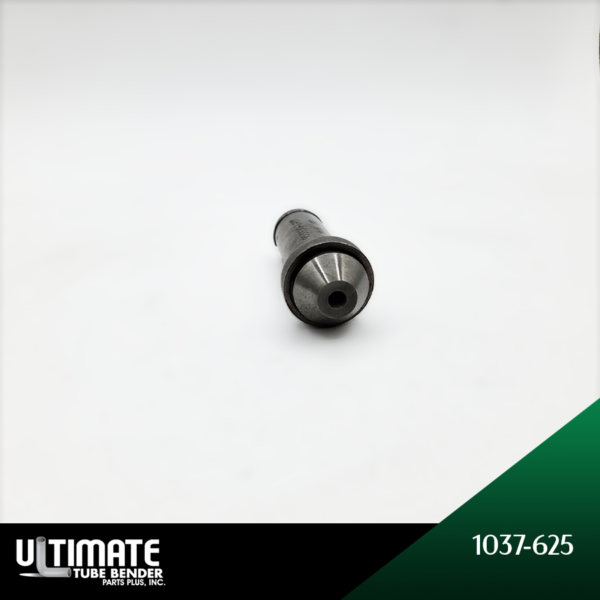

Double Flare Punch that mates with its die to shape 5/8″ (0.625″ decimal) tube into a finished upset or flared end.
In stock
Brand:
Various
Model:
101553 Series
Condition:
Varies by Item
Not sure what Machine, Parts, or Tooling you need? We can help!
This Double Flare Punch is sized to 5/8″ (0.625″ decimal) tube, and produces the forming stroke needed for a proper double flare or upset end. Because it contacts the tube directly, punch condition has a direct effect on flare consistency and finish quality. It fits standard double-flare tooling setups used across tube end finishing shops. It is part of the 101553 series; compatible with DF tube end forming machines, and is a good fit for shops standardizing their tube and pipe end-forming tooling.
Series: 101553
Tube Outside Diameter (TOD) -Fractional Inches: 5/8″
Tube Outside Diameter (TOD) – Decimal Inches: 0.625
Degrees: 37°
Tip No: 1037
Machine Compatibility: DF
| Series | Tool Diameter | Tube Outside Diameter (TOD) -Fractional Inches | Tube Outside Diameter (TOD) - Decimal Inches | Degrees | Thickness (T) | Grip (G) Fractional Inches | Grip (G) Decimal Inches | D | Tip No | Wall Thickness | Product No. | Leonard Precision Operation | Clarke & Lewis | PHI | Conrac | Dew Machine Tool | Machine Compatibility |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 101553 | 5/8" | 0.625 | 1037 | 1037 | |||||||||||||
| 101553 | 3/4" | 0.750 | 1237 | 1237 | |||||||||||||
| 101553 | 3/16" | 0.188 | 337 | 337 | |||||||||||||
| 101553 | 1/4" | 0.250 | 437 | 437 | |||||||||||||
| 101553 | 5/16" | 0.313 | 537 | 537 | |||||||||||||
| 101553 | 3/8" | 0.375 | 637 | 637 | |||||||||||||
| 101553 | 7/16" | 0.438 | 737 | 737 | |||||||||||||
| 101553 | 1/2" | 0.500 | 837 | 837 | |||||||||||||
