Double Flare Punch – 101553 Series – 1237 | 0.75 TOD

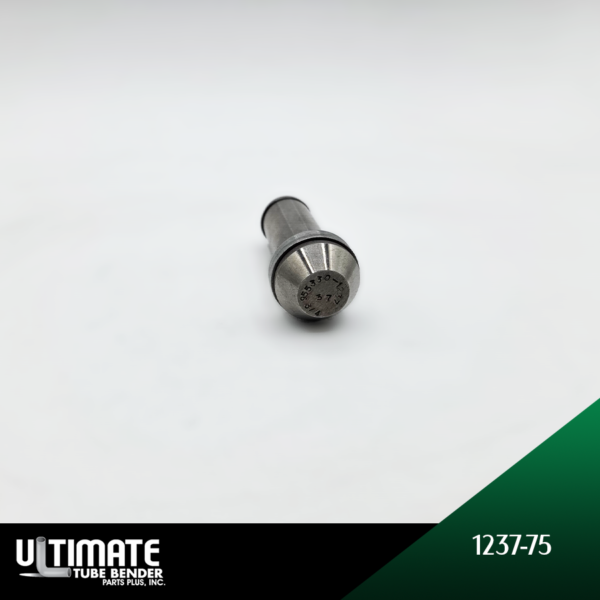

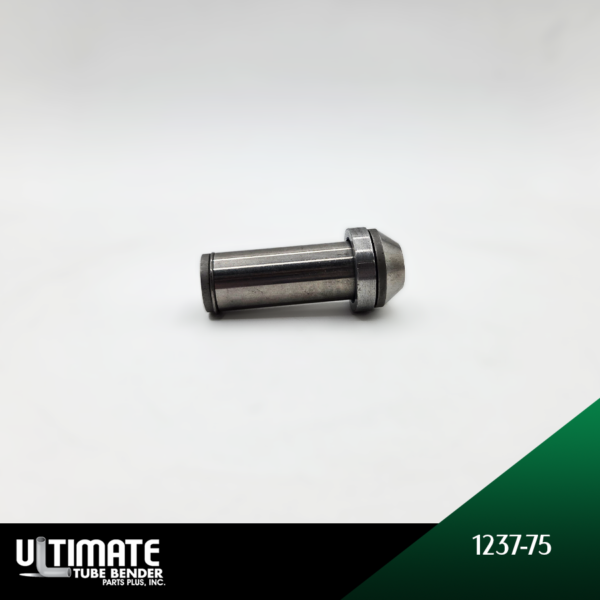

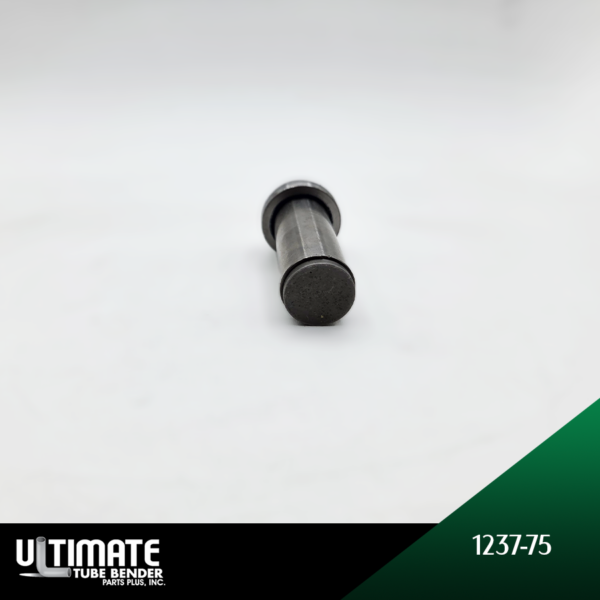

Double Flare Punch matched to 3/4″ (0.750″ decimal) OD tubing, built for clean upset or double-flare forming.
In stock
Brand:
Various
Model:
101553 Series
Condition:
New
Not sure what Machine, Parts, or Tooling you need? We can help!
This Double Flare Punch drives the forming stroke that shapes 3/4″ (0.750″ decimal) tube, into an upset or double-flare profile. It is matched to its companion die, and the two work together to fold or thicken the tube end before the final flare is set. Wear on this punch shows up as inconsistent flare depth, so keeping a spare on hand helps hydraulic end-forming lines avoid downtime. It is part of the 101553 series; compatible with DF tube end forming machines, and is a good fit for shops standardizing their tube and pipe end-forming tooling.
Series: 101553
Tube Outside Diameter (TOD) -Fractional Inches: 3/4″
Tube Outside Diameter (TOD) – Decimal Inches: 0.750
Degrees: 37°
Tip No: 1237
Machine Compatibility: DF
| Series | Tool Diameter | Tube Outside Diameter (TOD) -Fractional Inches | Tube Outside Diameter (TOD) - Decimal Inches | Degrees | Thickness (T) | Grip (G) Fractional Inches | Grip (G) Decimal Inches | D | Tip No | Wall Thickness | Product No. | Leonard Precision Operation | Clarke & Lewis | PHI | Conrac | Dew Machine Tool | Machine Compatibility |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 101553 | 5/8" | 0.625 | 1037 | 1037 | |||||||||||||
| 101553 | 3/4" | 0.750 | 1237 | 1237 | |||||||||||||
| 101553 | 3/16" | 0.188 | 337 | 337 | |||||||||||||
| 101553 | 1/4" | 0.250 | 437 | 437 | |||||||||||||
| 101553 | 5/16" | 0.313 | 537 | 537 | |||||||||||||
| 101553 | 3/8" | 0.375 | 637 | 637 | |||||||||||||
| 101553 | 7/16" | 0.438 | 737 | 737 | |||||||||||||
| 101553 | 1/2" | 0.500 | 837 | 837 | |||||||||||||
