Double Flare Punch – 101553 Series – 537 | 0.3125 TOD

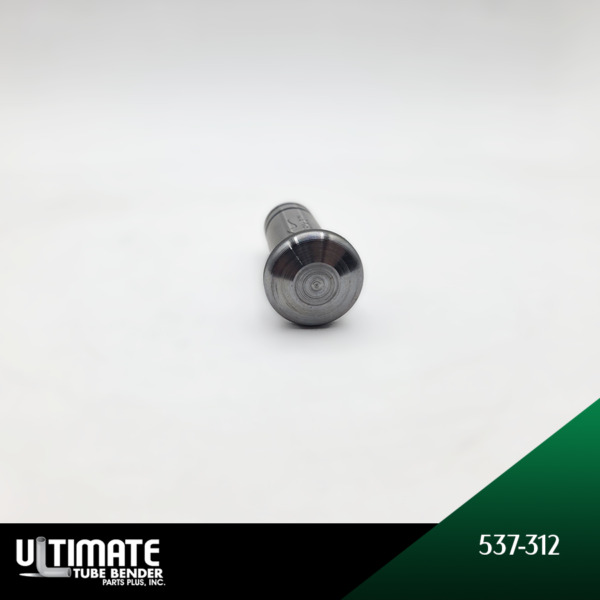

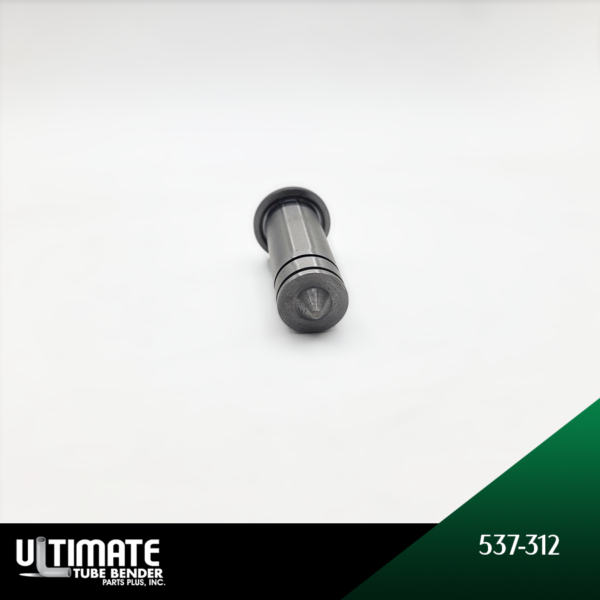

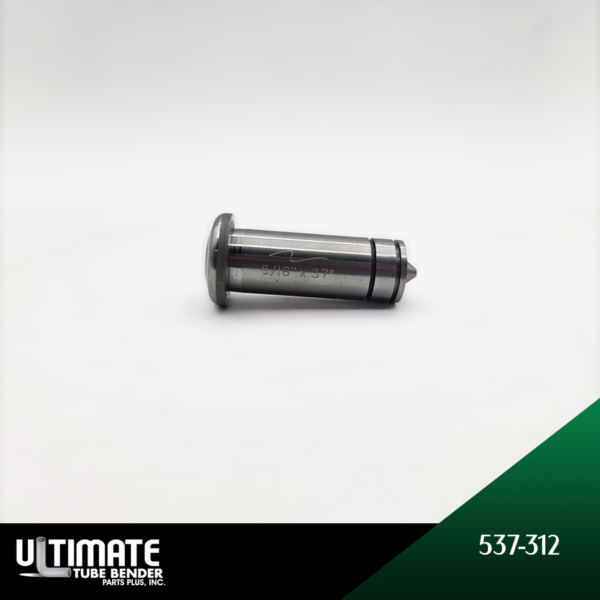

Double Flare Punch that mates with its die to shape 5/16″ (0.313″ decimal) tube into a finished upset or flared end.
Only 2 left in stock
Brand:
Various
Model:
101553 Series
Condition:
New
Not sure what Machine, Parts, or Tooling you need? We can help!
This Double Flare Punch drives the forming stroke that shapes 5/16″ (0.313″ decimal) tube into an upset or double-flare profile. It is matched to its companion die, and the two work together to fold or thicken the tube end before the final flare is set. Wear on this punch shows up as inconsistent flare depth, so keeping a spare on hand helps end finisher lines avoid downtime. It is part of the 101553 series; compatible with DF tube end forming machines, and is a good fit for shops standardizing their pipe end finishing tooling.
Series: 101553
Tube Outside Diameter (TOD) -Fractional Inches: 5/16″
Tube Outside Diameter (TOD) – Decimal Inches: 0.313
Degrees: 37°
Tip No: 537
Machine Compatibility: DF
| Series | Tool Diameter | Tube Outside Diameter (TOD) -Fractional Inches | Tube Outside Diameter (TOD) - Decimal Inches | Degrees | Thickness (T) | Grip (G) Fractional Inches | Grip (G) Decimal Inches | D | Tip No | Wall Thickness | Product No. | Leonard Precision Operation | Clarke & Lewis | PHI | Conrac | Dew Machine Tool | Machine Compatibility |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 101553 | 5/8" | 0.625 | 1037 | 1037 | |||||||||||||
| 101553 | 3/4" | 0.750 | 1237 | 1237 | |||||||||||||
| 101553 | 3/16" | 0.188 | 337 | 337 | |||||||||||||
| 101553 | 1/4" | 0.250 | 437 | 437 | |||||||||||||
| 101553 | 5/16" | 0.313 | 537 | 537 | |||||||||||||
| 101553 | 3/8" | 0.375 | 637 | 637 | |||||||||||||
| 101553 | 7/16" | 0.438 | 737 | 737 | |||||||||||||
| 101553 | 1/2" | 0.500 | 837 | 837 | |||||||||||||
