Double Flare Punch – 101553 Series – 737 | 0.4375 TOD

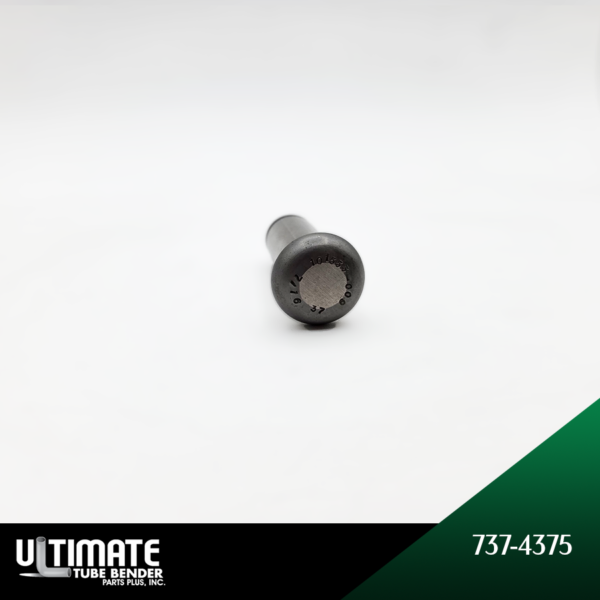

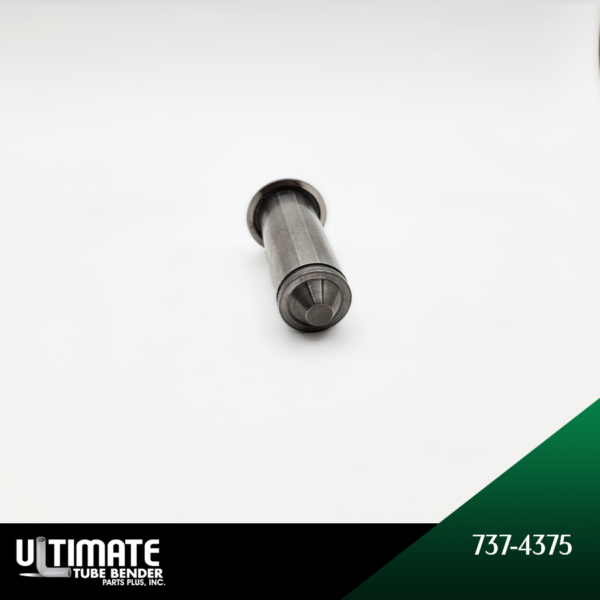

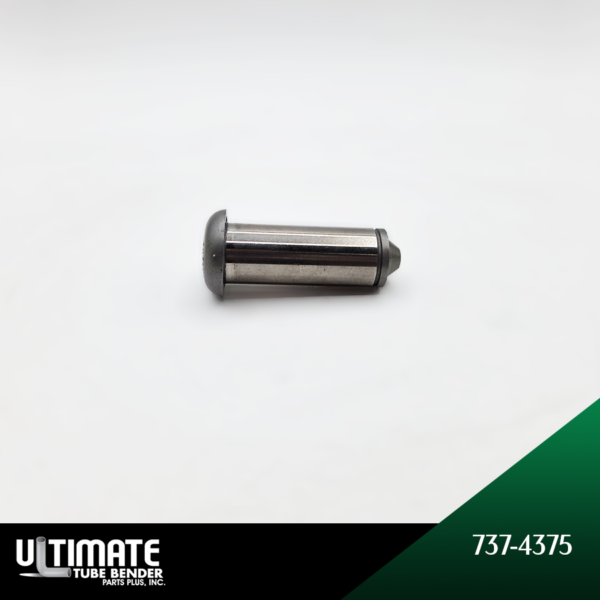

Double Flare Punch matched to 7/16″ (0.438″ decimal) OD tubing, built for clean upset or double-flare forming.
In stock
Brand:
Various
Model:
101553 Series
Condition:
New
Not sure what Machine, Parts, or Tooling you need? We can help!
Built to mate with its corresponding die, this Double Flare Punch forms the upset or double-flare shape in 7/16″ (0.438″ decimal) tube. Getting this step right sets up the tube wall so the finished flare has enough material to seal properly. It is a common wear item in tube end finishing tooling kits and is worth replacing at the first sign of galling or rounded edges. It is part of the 101553 series; compatible with DF tube end forming machines, and is a good fit for shops standardizing their tube end finishing tooling.
Series: 101553
Tube Outside Diameter (TOD) -Fractional Inches: 7/16″
Tube Outside Diameter (TOD) – Decimal Inches: 0.438
Degrees: 37°
Tip No: 737
Machine Compatibility: DF
| Series | Tool Diameter | Tube Outside Diameter (TOD) -Fractional Inches | Tube Outside Diameter (TOD) - Decimal Inches | Degrees | Thickness (T) | Grip (G) Fractional Inches | Grip (G) Decimal Inches | D | Tip No | Wall Thickness | Product No. | Leonard Precision Operation | Clarke & Lewis | PHI | Conrac | Dew Machine Tool | Machine Compatibility |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 101553 | 5/8" | 0.625 | 1037 | 1037 | |||||||||||||
| 101553 | 3/4" | 0.750 | 1237 | 1237 | |||||||||||||
| 101553 | 3/16" | 0.188 | 337 | 337 | |||||||||||||
| 101553 | 1/4" | 0.250 | 437 | 437 | |||||||||||||
| 101553 | 5/16" | 0.313 | 537 | 537 | |||||||||||||
| 101553 | 3/8" | 0.375 | 637 | 637 | |||||||||||||
| 101553 | 7/16" | 0.438 | 737 | 737 | |||||||||||||
| 101553 | 1/2" | 0.500 | 837 | 837 | |||||||||||||
