Keyence ES-32DC Amplifier Unit

Brand:

Keyence

Model:

ES-32DC

Condition:

Used
Get A Quote
Not sure what Machine, Parts, or Tooling you need?  We can help!
810.844.0233

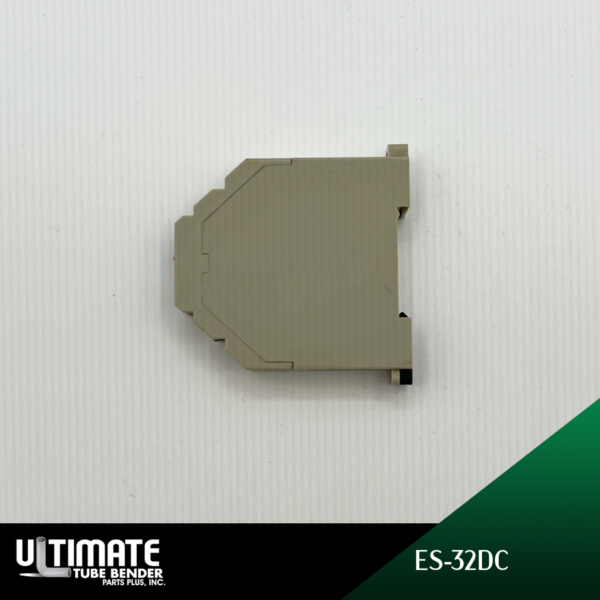

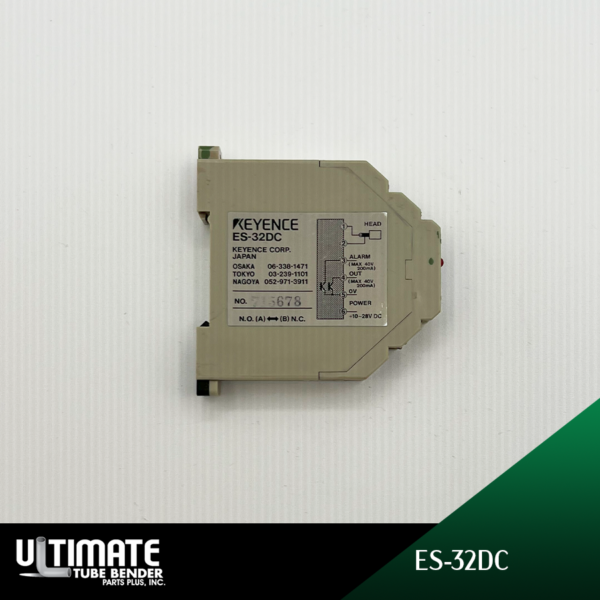

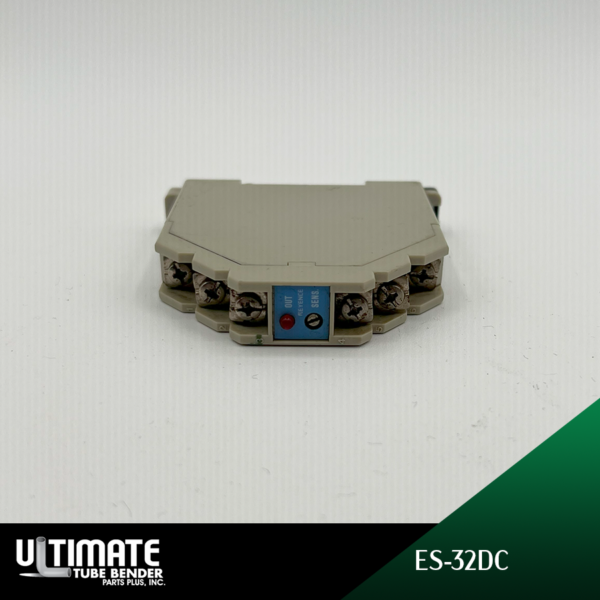

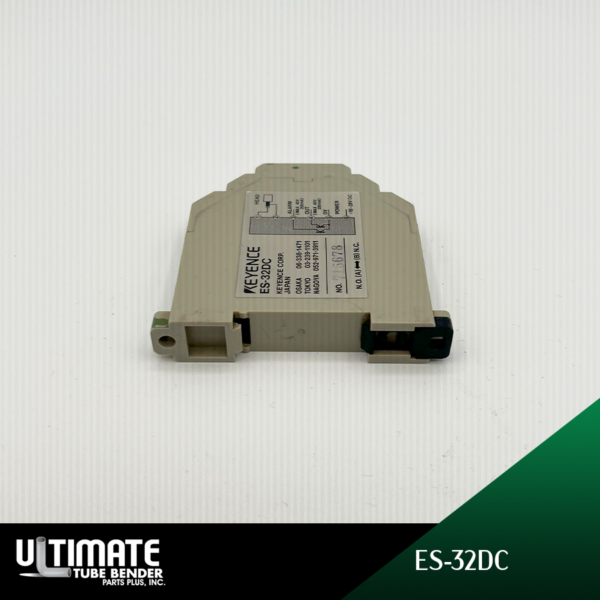

Keyence ES-32DC NPN Amplifier Unit

  • Type: DC NPN output amplifier unit
  • Operation Mode: Switch-selectable NO/NC operation
  • Indicator: Equipped with a red LED output indicator
  • Output Control:
    • Control output up to 200 mA (40 V) maximum
    • Residual voltage: 1 V maximum
  • Disconnection Alarm Output:
    • 100 mA (40 V) maximum
    • Residual voltage: 1 V maximum
  • Response Time: 1 ms maximum
  • Temperature Characteristics: ±8% of detecting distance at 23°C, within a range of 0 to 50°C
  • Sensitivity Adjustment: Features a 15-turn trimmer for precise settings
  • Power Requirements: 10 to 28 VDC, Ripple (P-P) 10% or less
  • Current/Power Consumption: 18 mA maximum
  • Environmental Resistance:
    • Ambient temperature range from 0 to +50 °C
    • Relative humidity from 35 to 85% RH (no condensation)
  • Weight: Approximately 48 grams



1 In Stock
