PHI DF-HD Double Flare Machine 2000
Brand:
PHI
Model:
DF-HD
Condition:
Used
Not sure what Machine, Parts, or Tooling you need? We can help!

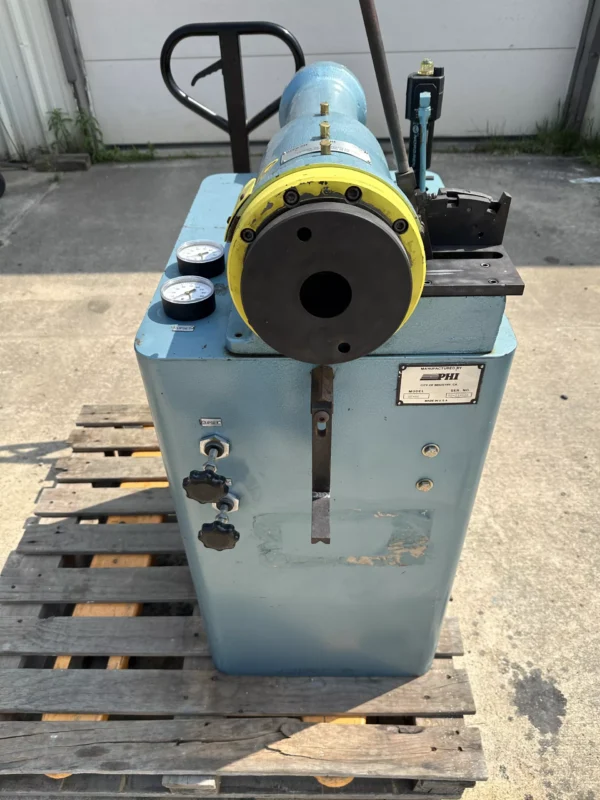

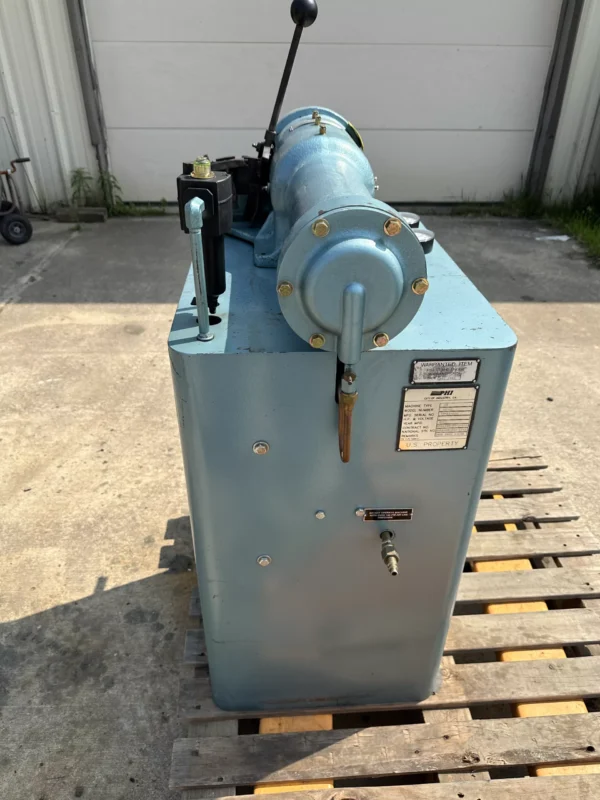

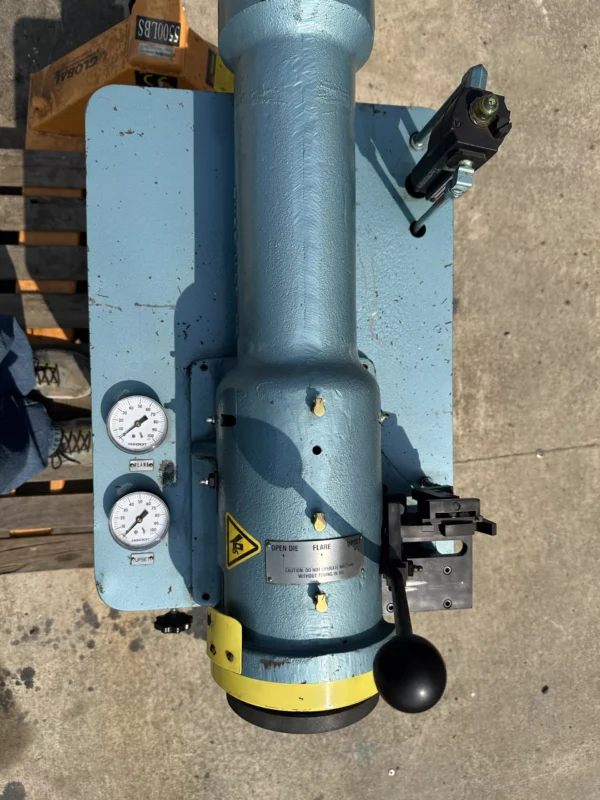

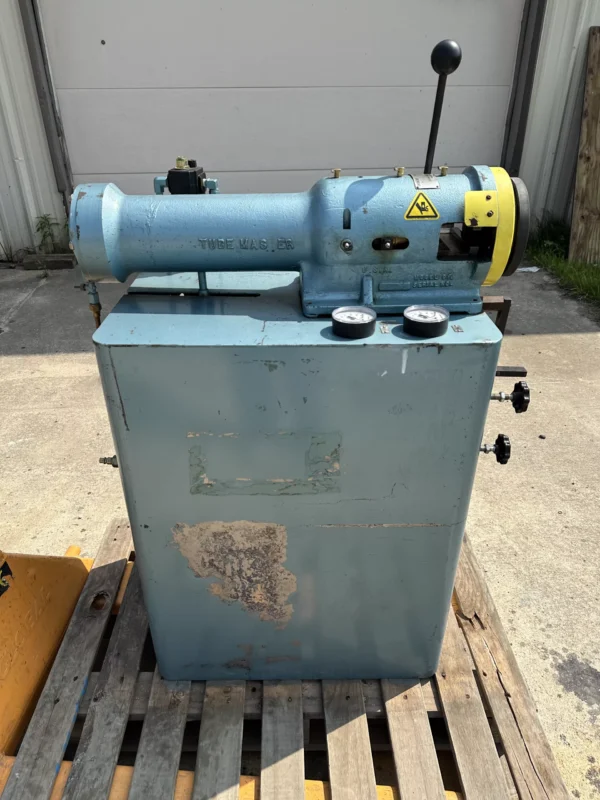

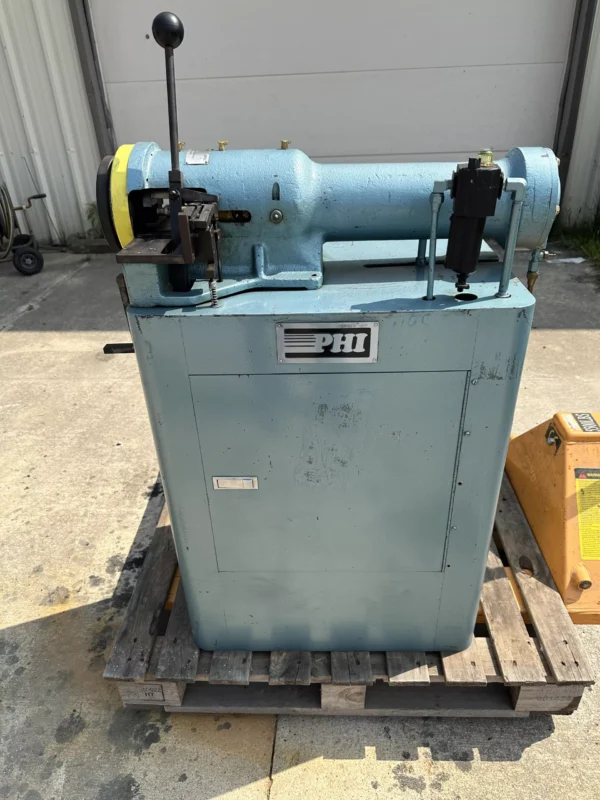

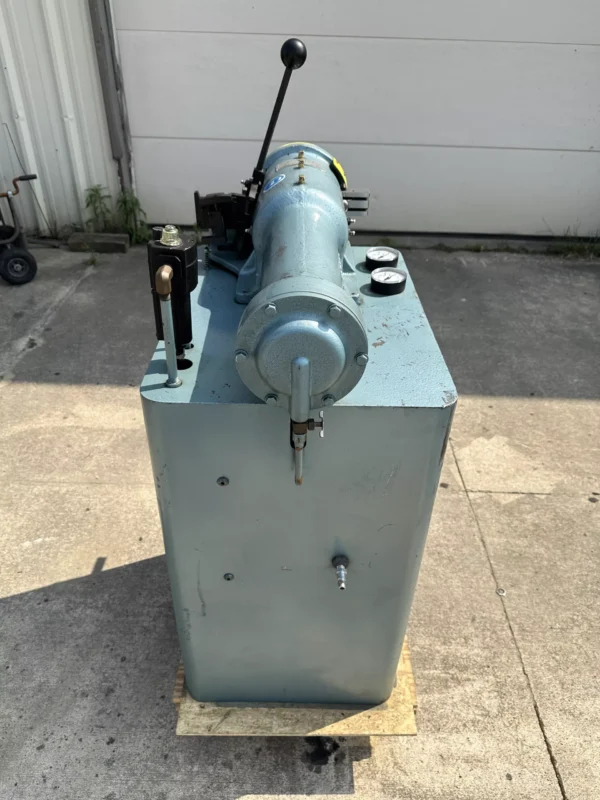

Used PHI DF-HD Double Flare Machine
Excellent condition Came from the Military
PHI’s Model DF is a high-production tube and pipe end finishing unit, allowing the production of up to 600 double lap flares per hour. The machine is operated by a single lever which activates the two steps required to form a double flare. No electricity is required. All operations are pneumatically powered.
The Model DF is a double-lap flaring machine which produces a double thickness flare. It will also produce a single-thickness flare and an upset bead.
The machine forms double-lap flares to precise 37° and 45° dimensions. Single flares are also done with precision and within specifications — every time. All flares are within the tolerance of SAE 37° and 45°, MS 33583, AND10078/JIC specifications, and upset beading is within the tolerance of specification AND10060, all subject to material hardness and wall thickness limits.
About Double Flaring
Double-lap flares provide added-strength joints which are more resistant to fatigue and provide a better seal than single-thickness flares.
Double-lap flares formed by PHI machinery and tooling are free of cracks and pitmarks. The joint is also designed so that the inside surface of the flare has a larger diameter than the inside diameter of the tube or pipe and, therefore, does not interfere with flow characteristics of the system.
Typical Applications
Thin-wall tubing connections that are subject to shock, vibration, or high internal pressures such as automobile brake lines and critical aircraft hydraulic lines.
Specifications
| Model DF | |
|---|---|
| Capacity – Double Lap Flaring | 1/8 in to 1/2 in OD, annealed ferrous or nonferrous tubing |
| Capacity – Single Flaring | 1/8 in to 3/4 in OD, annealed ferrous or nonferrous tubing |
| Capacity – Beading | 3/16 in to 1/2 in OD, annealed ferrous or nonferrous tubing |
| Operation | Single lever operated, entirely pneumatically powered |
| Air Supply | 75-100 psi air supply required. Air consumption approx. 1-1/2 cfm at 100 psi. No electrical connection. |
| Standard Tooling | For MS and SAE Flare Specifications |
| Dimension | 28 in x 18 in x 42 in (L x W x H) |
| Shipping Weight | 480 lb |
