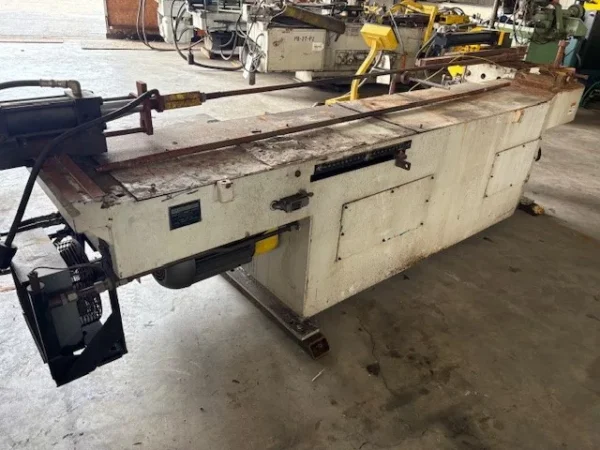

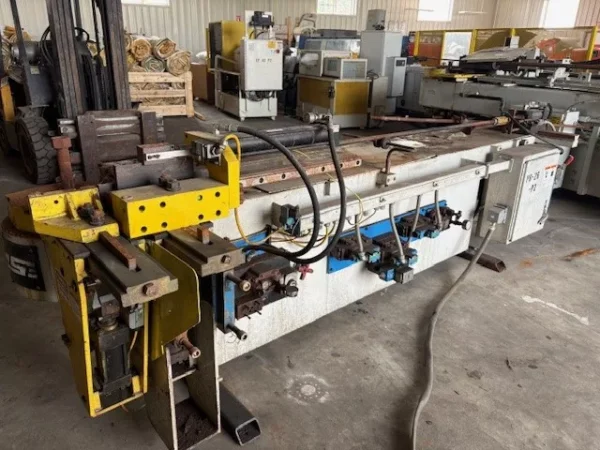

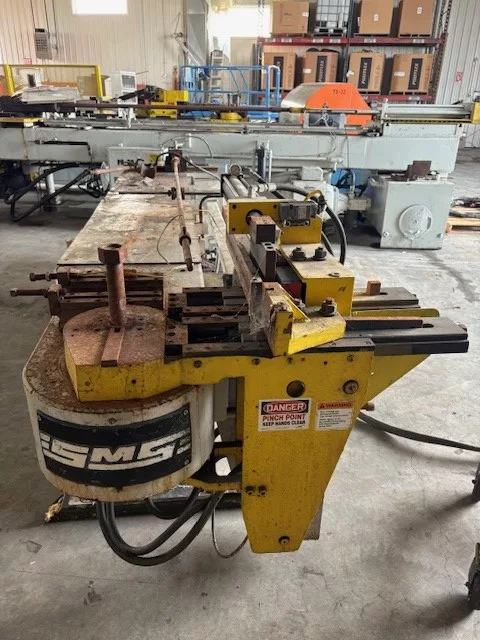

Pines (SMS) #2 Hydraulic Tube Bender

Brand:

Pines (SMS)

Model:

#2

Condition:

Used
Get A Quote
Not sure what Machine, Parts, or Tooling you need?  We can help!
810.844.0233

🏭 Used Pines (SMS) #2 Hydraulic Tube Bender – High-Performance Bending with Modern Control

This Pines (SMS) #2 Hydraulic Tube Bender is a high-precision machine built for accuracy, repeatability, and high-volume productivity. Featuring RH (clockwise) rotation, a hydraulic mandrel extractor, and a pressure die assist system with linear rail and bearing style, this unit is engineered for clean, tight-radius bends across various tube materials.

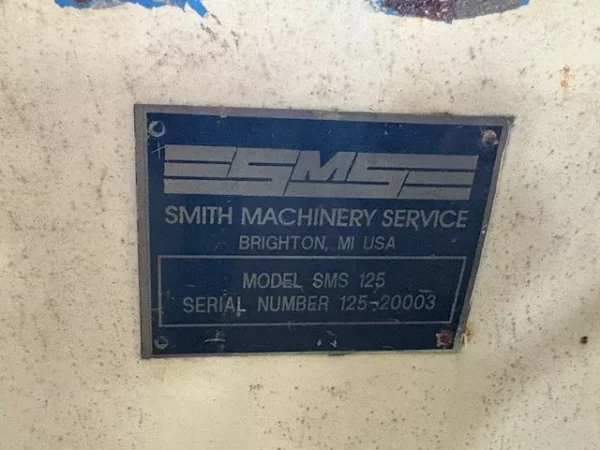

The SMS bender was built by Smith Machinery Service and was a clone of the Pines #2 with some upgrades.

The SMS was originally a #1-1/4 (3″ Bore bend cylinder and had been upgraded to a #2 (5″ Bore bend cylinder).

Equipped with Current Tech “CAB” Controls, Vickers valves, and an oil cooler, it’s a powerful mix of legacy strength and modern control — ideal for demanding tube bending applications across industrial sectors.

⚙️ Specifications & Key Features

Feature Description
Model Pines (SMS) #2 Hydraulic Tube Bender
Rotation RH (Clockwise)
Control System Current Tech “CAB” Control – advanced user-friendly interface
Mandrel Extractor Hydraulic – ensures wrinkle-free, precision bends
Pressure Die Assist Linear Rail & Bearing Style – supports tubing during the bend
Cooling System Integrated Oil Cooler – maintains system temperature during long cycles
Valves Vickers – reliable industrial-grade hydraulic performance
Bend Type Rotary Draw – for tight-radius, high-integrity bends
Condition Used – Fully operational and tested

✅ Why This Machine Stands Out

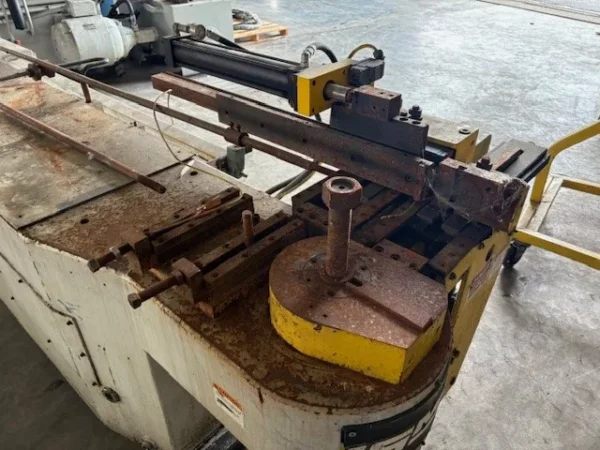

  • Precision Linear Pressure Die Assist:
    The rail-and-bearing design offers smooth, synchronized pressure support for consistent wall integrity during the bend.

  • Hydraulic Mandrel Extraction:
    Ensures clean bends with minimal distortion in thin-wall or stainless tubing applications.

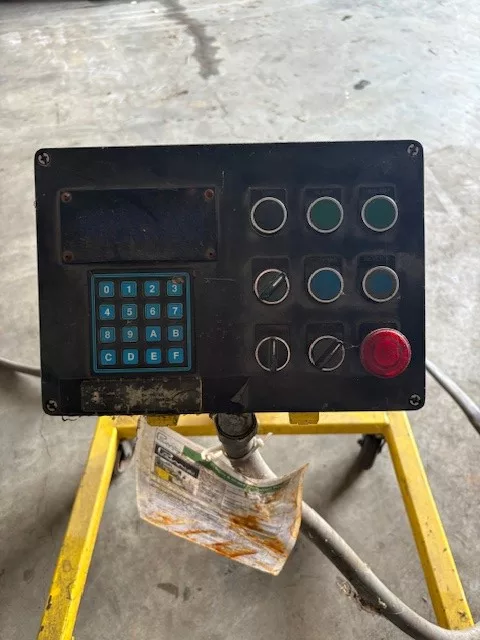

  • Modern CAB Control System:
    Delivers accurate bend programming, operator-friendly controls, and increased production efficiency.

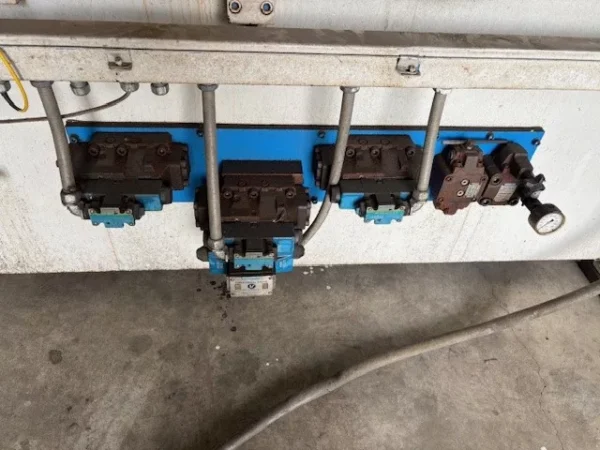

  • Vickers Hydraulic Components:
    Industry-standard for reliability and long-lasting pressure stability.

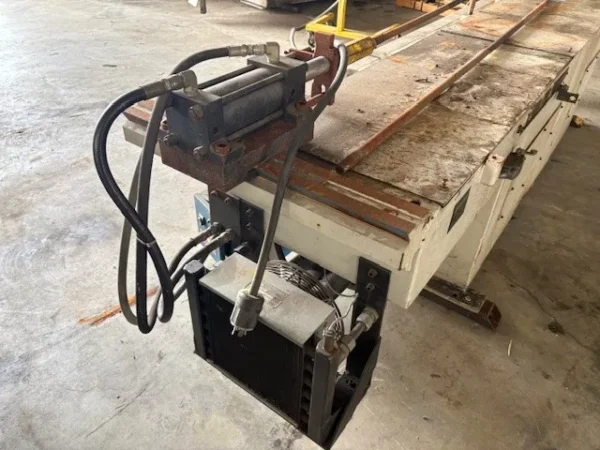

  • Cooling System Included:
    The onboard oil cooler ensures reliable performance even in long production runs, reducing wear on hydraulic components.

🧰 Ideal For These Applications:

  • Aerospace and Defense tubing

  • Automotive chassis and headers

  • Marine fuel and hydraulic lines

  • HVAC tubing

  • Stainless and titanium medical or industrial tubing

🔍 Machine Condition

This unit is in excellent working condition, mechanically tested and hydraulically verified. The controls respond accurately, the mandrel extractor runs smoothly, and the die assist tracks cleanly. No fluid leaks, no frame damage, and the cooler maintains optimal temps during continuous operation.

📦 Included with Machine:

  • Pines (SMS) #1-1/4 Hydraulic Tube Bender

  • Hydraulic Mandrel Extractor

  • Linear Rail Pressure Die Assist Assembly

  • CAB Control Panel

  • Oil Cooler

  • Vickers Valves System

  • Optional: Tooling / die sets available upon request

📞 Ready to Bend Smarter and Smoother?

If you’re in the market for a production-ready, high-precision tube bender with modern controls and legacy toughness, this Pines (SMS) #1-1/4 is an unbeatable solution. Built for performance, priced for smart buyers.

👉 Contact us now for pricing, inspection video, and nationwide freight options.
