SOCO DEF-FA/52 Tube End Finishing Machine

Brand:

SOCO

Model:

DEF-FA/52

Condition:

Used
Get A Quote
Not sure what Machine, Parts, or Tooling you need?  We can help!
810.844.0233

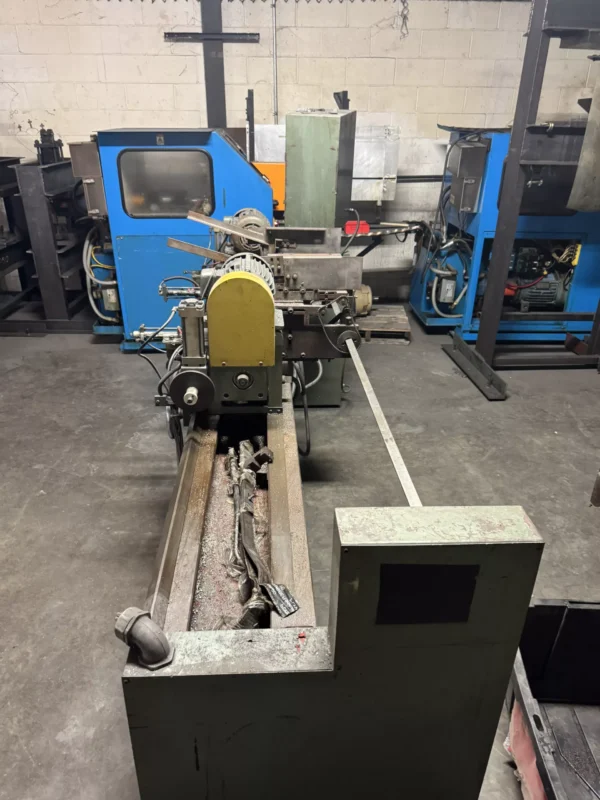

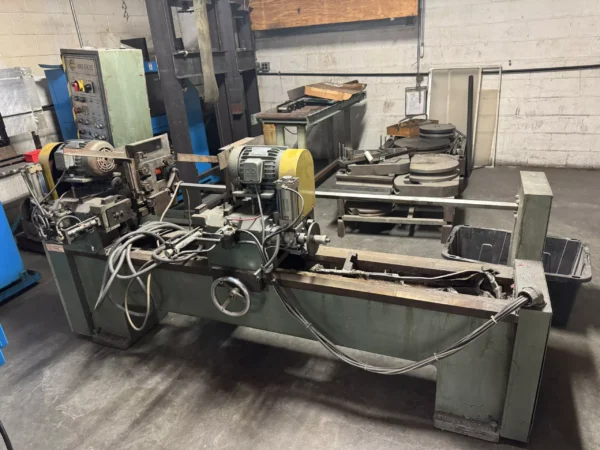

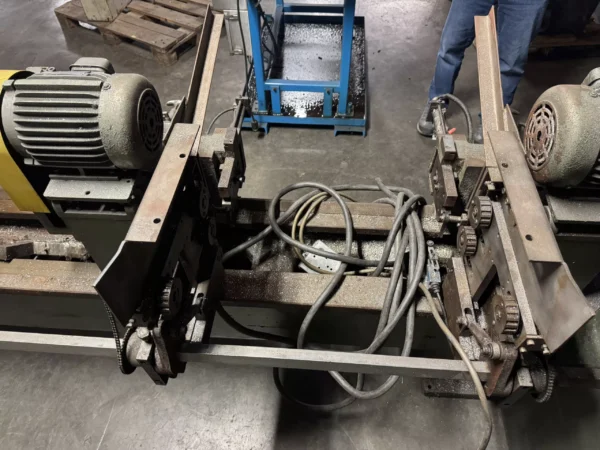

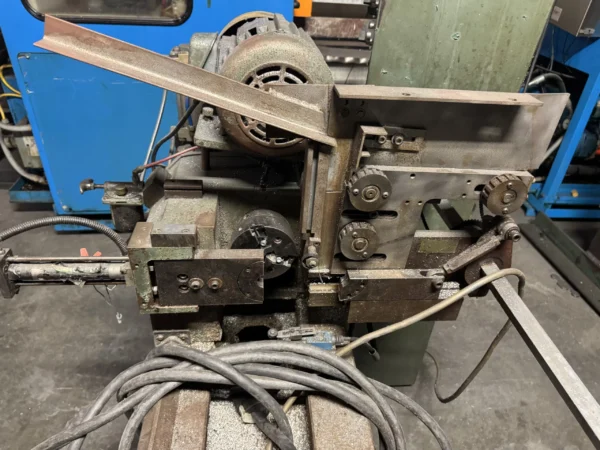

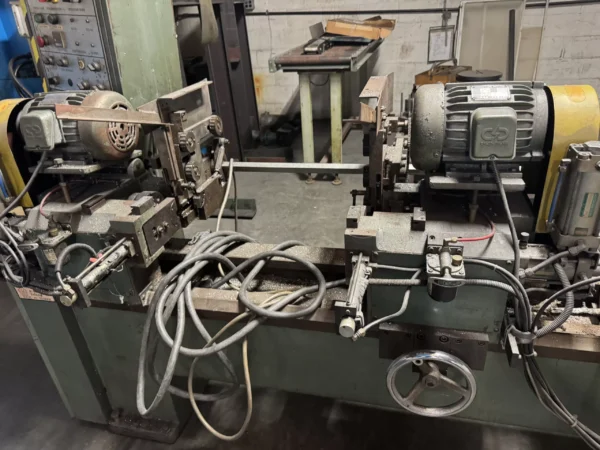

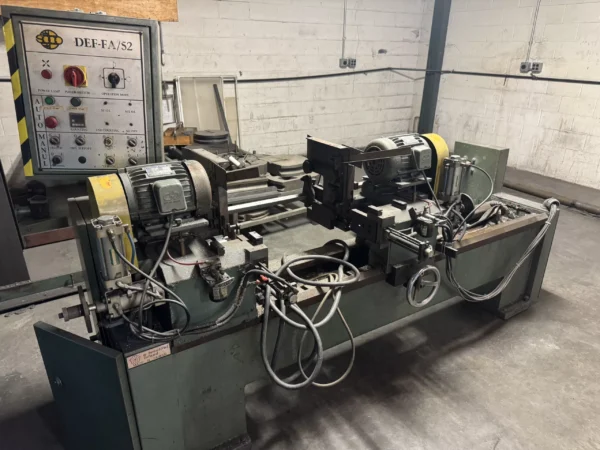

Used SOCO DEF-FA/52 Tube End Finishing Machine

With the SOCO DEF-FA/52 chamfering machine, it is possible to simultaneously chamfer both ends of a tube with up to 2000mm in working length.

Versatility & Range

  • Working length can be set as short as 150mm up to 2000mm
  • Diameter ranges from 15mm up to 52mm
  • Suitable for tube and solid bars made from materials such as steel, stainless steel, copper and aluminum.
  • Ability to I/O chamfer as deep as 15mm
  • Suitable for I/O chamfering, centering, deep chamfering and radius chamfering

Performance

  • Cycle times as short as 3 seconds
  • Patented feeding system for the work piece, ensuring a smooth process throughout
  • The rigid tool seat has been designed for durability, with easily ficable tool bits for longer working life.
  • 2 step chamfering process
    • First speed – Fast approach for time saving.
    • Second speed – Infinitely adjustable chamfering speed for smooth finish
  • The length tolerance of each working piece can be controlled within +-0.1mm through a cutting speed adjustment system
  • The machine bed’s heavy casting and head stock can absorb working vibrations, providing a continuous and stable operation
