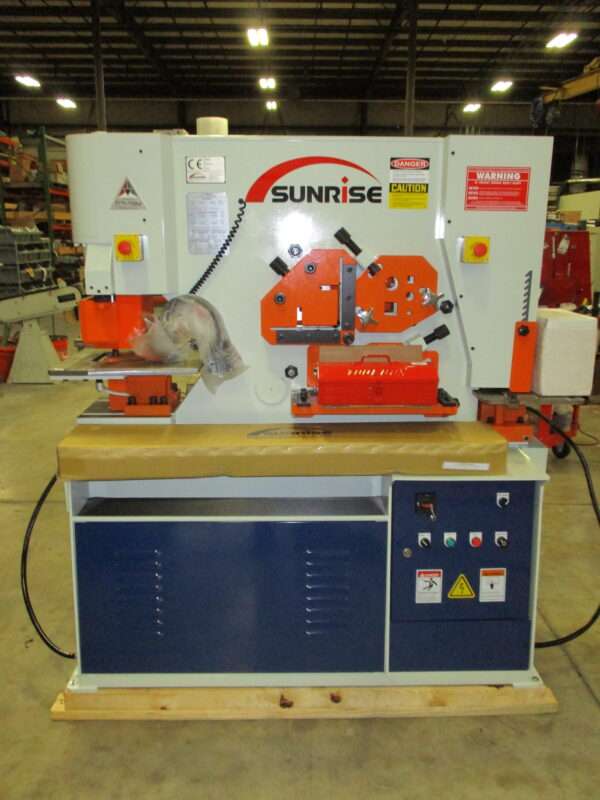

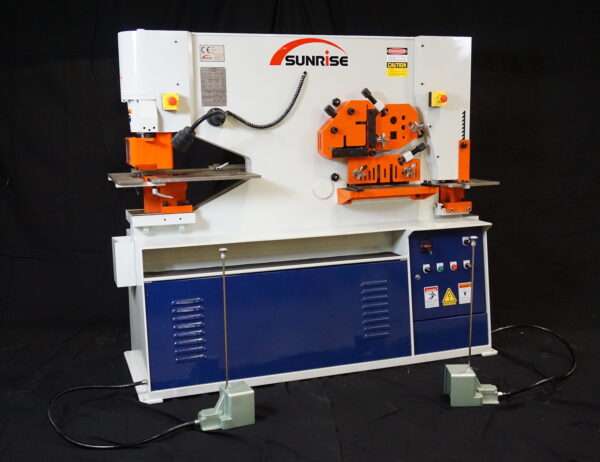

Sunrise IW-66SD Dual Cylinder Ironworker
- Dual-Cylinder – Dual-Operator – Two Foot Pedals
- Five fully integrated working stations
- Angle shear with no material loss cut and four-edge blades
- Heavy-duty adjustable punch stripper with visibility window
- 3 Years Parts / 1 Year Labor Warranty
Brand:
Sunrise
Model:
IW-66SD
Condition:
Not sure what Machine, Parts, or Tooling you need? We can help!
SUNRISE IRONWORKERS INCLUDE, AS STANDARD, THE MOST COMPLETE SET OF FEATURES OF ANY IRONWORKER BRAND:
- 40″ Touch-and-Cut Electric Back Gauge (Optional extensions to 12′ available)
- Machined Punch Gauge Table with X-Y Positioning System
- Machined Notcher Gauge Table with X-Y Positioning
- LED Magnetic-Base Work Light
- Set of 11 Punches & Dies from American Punch – 3/8″ – 1-1/2″
- Reversible Structural Die Block for up to 2″ diameter hole capacity including overhang for angle and channel flange punching
- Complete tool kit with Manual, CAD Parts Drawings, Electrical and Hydraulic Schematics printed and loaded on a USB
- Full tank of Hydraulic Oil
- HD Start-Up Video including safety, maintenance, and operation – Including QR codes to easily access on the side of each machine.
- Extensive List of Optional Equipment: Accessory PDF
SUNRISE offers one of the widest ranges of CNC options today, including semi and fully-automatic punches, automatic shearing, and new complete processing systems.
Punch: 66 Tons – 7/8″ in 3/4″| 2″ in 5/16“
Throat: 20″
Angle Shear: 5″ x 5″ x 1/2″ – 3″ x 3″ x 3/8″ Miter
Plate Shear: 14″ x 9/16″ or 10″ x 3/4″
Notcher: 2″ x 3-1/2″ x 3/8″
HP: 7.5
Power Requirements: 3 Phase | 220/480
Machine Size: SD Model 82″ x 32″ 68″ – 4875#
