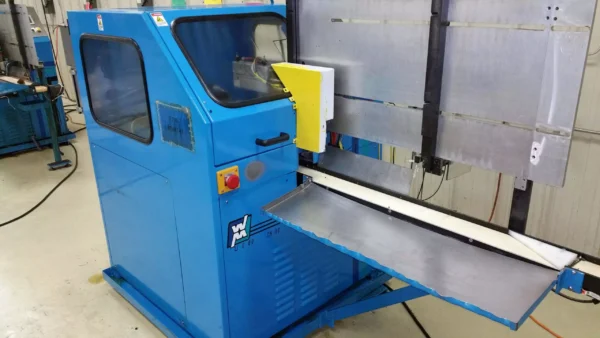

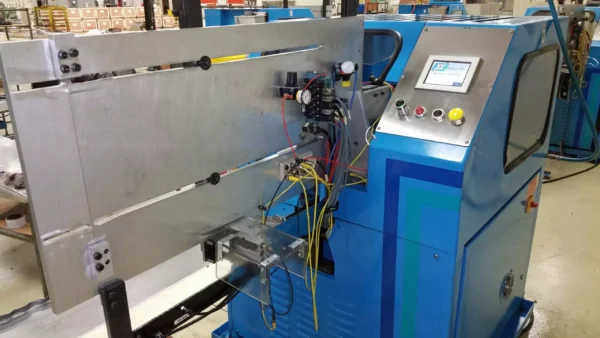

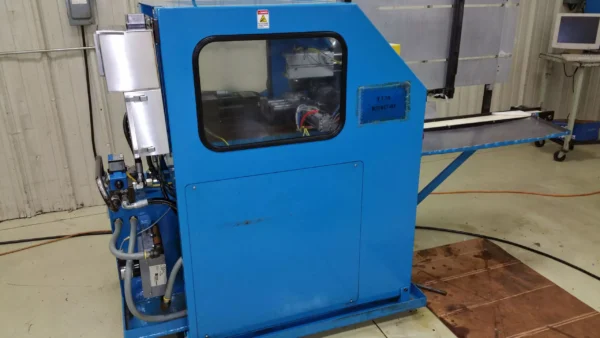

Wauseon 1003 1″ Hydraulic Tube End Former
Brand:
Wauseon
Model:
1003
Condition:
Used
Not sure what Machine, Parts, or Tooling you need? We can help!
Used Wauseon 1003 1″ Hydraulic Tube End Former — Precision Tube Endforming by UTB Michigan
The Used Wauseon 1003 1″ Hydraulic Tube End Former is engineered for precision, repeatability, and production-grade performance.
Built for industrial tube fabrication, this unit provides smooth, consistent forming for expanding, reducing, flaring, and beading tube ends up to 1-inch OD.
Known for reliability and American-built quality, Wauseon Machine & Manufacturing equipment delivers unmatched strength and durability for high-volume forming environments.
This machine has been fully tested and verified by Ultimate Tube Bender (UTB Michigan) to ensure smooth hydraulic performance, die alignment, and system accuracy.
⚙️ Machine Specifications
| Specification | Details |
|---|---|
| Model | Wauseon 1003 |
| Type | Hydraulic Tube End Former |
| Tube Capacity | Up to 1” OD |
| Operation | Hydraulic |
| Manufacturer | Wauseon Machine & Manufacturing |
| Condition | Used — Tested & Verified |
| Power Source | 230V / 3-Phase |
| Location | Michigan, USA |
| Availability | In Stock — Ready to Ship |
🔍 Key Features
-
High-precision hydraulic forming with repeatable results
-
Heavy-duty construction designed for long service life
-
Capable of end forming, expanding, reducing, and beading
-
Compact design ideal for production or prototyping
-
Fully tested and serviced by UTB Michigan
🧾 Inspection & Verification
Before listing, this Used Wauseon 1003 Hydraulic Tube End Former was tested for:
-
Hydraulic cylinder pressure and motion accuracy
-
Ram alignment and die seating consistency
-
Electrical and safety switch function
-
Full operation cycle under load
💬 Why Buy from UTB Michigan?
-
Fully inspected and production-ready machinery
-
Specialists in tube bending, end forming, and fabrication equipment
-
Trusted by manufacturers and job shops across North America
-
Nationwide and international shipping available
📞 Request a Quote Today
Contact UTB Michigan to get pricing and delivery details for this Used Wauseon 1003 1″ Hydraulic Tube End Former — your reliable solution for precision tube endforming.
Visit www.benderparts.com
Used Wauseon 1003 1″ Hydraulic Tube End Former
MODEL ……………….. 1003
CAPACITY …………….. 1″
RAM CYLINDER (HYD) ……. 3-1/4″ BORE X 3″ STROKE
MAXIMUM RAM FORCE …….. 8.2 TONS
CLAMP CYLINDER (AIR) ….. 14.5 TONS DURING LOCKUP
SHUTTLE CYLINDER (AIR) … 3-1/4″ BORE
HYDRAULIC POWER UNIT ….. 40 GALLON RESERVOIR
15 GPM, PISTON PUMP HYDRAULIC PUMP 2000PSI
7.5 HP, 1800 RPM ODP
220/440 3 PHASE 60 Hz
RAM WORKING PRESSURE ….. 1200 PSI VARIABLE
RAW MAXIMUM PRESSURE ….. 2000 PSI
MAXIMUM JAW OPENING …… 1.50″
AIR REQUIREMENTS ……… 80 PSI
