End Finisher Tooling Guide – Double Flare

37° Flaring | 45° Flaring | Squaring & Deburring | Beading | Double-Flare | Flange Tooling

101612 Series – Double Flare Dies 37°

TOD: .125″ – .50″, .625″ – .050″ single flare only
101612 Series

Tool Diameter: 3-3/4″
Degrees: 37°

Tube Outside Diameter (TOD) -Fractional Inches	Tube Outside Diameter (TOD) - Decimal Inches	Thickness (T)	Grip (G) Decimal Inches	Leonard Precision Operation	Clarke & Lewis	PHI	Conrac	Dew Machine Tool
1/8"	0.125	2" (Grip Length 1 Inch)	1.000	233	CL233	101612-001	233	DEW233
3/16"	0.188	2" (Grip Length 1 Inch)	1.000	333	CL333	101612-002	333	DEW333
1/4"	0.250	2"	2.000	433	CL433	101612-003	433	DEW433
5/16"	0.313	2"	2.000	533	CL533	101612-004	533	DEW533
3/8"	0.375	2"	2.000	633	CL633	101612-005	633	DEW633
7/16"	0.438	2.5"	2.500	733	CL733	101612-006	733	DEW733
1/2"	0.500	2.5"	2.500	833	CL833	101612-007	833	DEW833
5/8"	0.625	2.5" (Single Flare Only)	2.500	1003	CL1003	101612-008	1003	DEW1003
3/4"	0.750	2.5" (Single Flare Only)	2.500	1233	CL1233	101612-009	1233	DEW1233

101612 Series – Double Flare Dies 45°

TOD: .125″ – .50″, .625″ – .75″ single flare only
101612 Series

TOD: Tool Outside Diameter
T: Thickness

Tool OD	Leonard Precision	Clarke & Lewis	PHI	Conrac	Dew Machine Tool
1"	45-3716	CL45-3716	102195-001	45-3716	DEW 45-3716
1 1/8"	45-3718	CL45-3718	102195-002	45-3718	DEW 45-3718
1 1/4"	45-3720	CL45-3720	102195-003	45-3720	DEW 45-3720
1 3/8"	45-3722	CL45-3722	102195-004	45-3722	DEW 45-3722
1 1/2"	45-3724	CL45-3724	102195-005	45-3724	DEW 45-3724
1 5/8"	45-3726	CL45-3726	102195-006	45-3726	DEW 45-3726
1 3/4"	45-3728	CL45-3728	102195-007	45-3728	DEW 45-3728
2"	45-3732	CL45-3732	102195-008	45-3732	DEW 45-3732
2 1/4"	45-3736	CL45-3736	102195-009	45-3736	DEW 45-3736
2 1/2"	45-3740	CL45-3740	102195-010	45-3740	DEW 45-3740
2 3/4"	45-3744	CL45-3744	102195-011	45-3744	DEW 45-3744
3"	45-3748	CL45-3748	102195-12	45-3748	DEW 45-3748

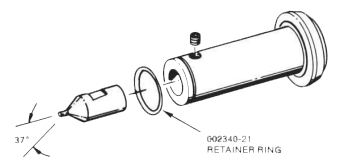

Flare Punch 37°

101851 Series (second operation)
TOD: .125″

Complete Punch Assembly
237-28 for .125″ OD x .028 WT
237-35 for .125″ OD x .035 WT

TOD: Tool Outside Diameter
WT: Wall Thickness

Flare Punch 37°

101553 Series (second operation)
TOD: .187″ – .75″

TOD: Tool Outside Diameter
WT: Wall Thickness

Series	Tool Diameter	Tube Outside Diameter (TOD) -Fractional Inches	Tube Outside Diameter (TOD) - Decimal Inches	Degrees	Thickness (T)	Grip (G) Fractional Inches	Grip (G) Decimal Inches	D	Tip No	Wall Thickness	Product No.	Leonard Precision Operation	Clarke & Lewis	PHI	Conrac	Dew Machine Tool	Machine Compatibility
101553		5/8"	0.625						1037		1037
101553		3/4"	0.750						1237		1237
101553		3/16"	0.188						337		337
101553		1/4"	0.250						437		437
101553		5/16"	0.313						537		537
101553		3/8"	0.375						637		637
101553		7/16"	0.438						737		737
101553		1/2"	0.500						837		837

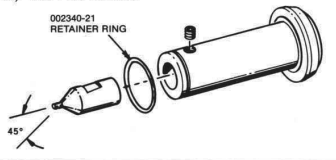

Flare Punch – 45°

105148 Series (second operation)
TOD: .125″

Complete Punch Assembly
245-28 for .125 OD x .028 WT
245-35 for .125 OD x .035 WT

TOD: Tool Outside Diameter
WT: Wall Thickness

Flare Punch – 45°

101553 Series (second operation)
TOD: .187″ – .75″

TOD: Tool Outside Diameter
WT: Wall Thickness

TOD	Punch No.
3/16	345
1/4	445
5/16	545
3/8	645
7/16	745
1/2	845
5/8	1045
3/4	1245

Thin-Wall Upset Punch

TOD: .187″ – .375″

TOD: Tool Outside Diameter
WT: Wall Thickness

TOD	Punch No.	Wall Thickness Inches
3/16	300	.022 or less
1/4	400	.022 or less
5/16	500	.022 or less
3/8	600	.022 or less

Upset Beading Punch

101854 Series
TOD: .187″ – .50″

TOD: Tool Outside Diameter
WT: Wall Thickness

TOD	Punch No.	.028	.035	.042	.049
3/16	366	-028	-035	-042	-049
1/4	466	-028	-035	-042	-049
5/16	566	-028	-035	-042	-049
3/8	666	-028	-035	-042	-049
7/16	766	-028	-035	-042	-049
1/2	866	-028	-035	-042	-049

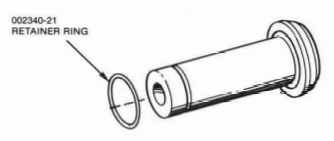

Upset Punch

101857 (first operation)
TOD: .125″

Complete Punch Assembly
220-28 for .125″ OD x .028 WT
220-35 for .125″ OD x .035 WT

TOD: Tool Outside Diameter
WT: Wall Thickness

Upset Punch

101422 (first operation)
TOD: .187″ – .50″

TOD: Tool Outside Diameter
WT: Wall Thickness

Tool OD	Leonard Precision	Clarke & Lewis	PHI	Conrac	Dew Machine Tool
1/8"	30-3702R	CL30-3702R	109409-001	30-3702R	DEW 30-3702R
3/16"	30-3703R	CL30-3703R	109409-002	30-3703R	DEW 30-3703R
1/4"	30-3704R	CL30-3704R	109409-003	30-3704R	DEW 30-3704R
5/16"	30-3705R	CL30-3705R	109409-004	30-3705R	DEW 30-3705R
3/8"	30-3706R	CL30-3706R	109409-005	30-3706R	DEW 30-3706R
7/16"	30-3707R	CL30-3707R	109409-006	30-3707R	DEW 30-3707R
1/2"	30-3708R	CL30-3708R	109409-007	30-3708R	DEW 30-3708R
5/8"	30-3710R	CL30-3710R	109409-008	30-3710R	DEW 30-3710R
3/4"	30-3712R	CL30-3712R	109409-009	30-3712R	DEW 30-3712R
7/8"	30-3714R	CL30-3714R	109409-110	30-3714R	DEW 30-3714R
1"	30-3716R	CL30-3716R	109409-011	30-3716R	DEW 30-3716R
1 1/8"	30-3718R	CL30-3718R	109409-012	30-3718R	DEW 30-3718R
1 1/4"	30-3720R	CL30-3720R	109409-013	30-3720R	DEW 30-3720R
1 3/8"	30-3722R	CL30-3722R	109409-014	30-3722R	DEW 30-3722R
1 1/2"	30-3724R	CL30-3724R	109409-015	30-3724R	DEW 30-3724R
1 5/8"	30-3726R	CL30-3726R	109409-016	30-3726R	DEW 30-3726R
1 3/4"	30-3728R	CL30-3728R	109409-017	30-3728R	DEW 30-3728R
2"	30-3732R	CL30-3732R	109409-019	30-3732R	DEW 30-3732R
